8 Cores OM4 Spiral Armored MPO Fiber Patch 3.0mm LSZH Jacket Rodent Resistant

8 Cores OM4 Spiral Armored MPO Fiber Patch 3.0mm LSZH Jacket Rodent Resistant

  • Nome
    8 nuclei cordone di patch MPO blindato
  • Modalità in fibra
    OM4
  • Diametro
    3,0 mm
  • Materiale
    Lszh
  • Colore
    viola
  • Lunghezza del cavo
    20m
  • Tubo blindato
    Acciaio inossidabile
  • Applicazione
    Data center
  • Caratteristica
    Resistente ai roditori
  • Classificazione di fiamma
    IEC60332-1-2
  • Luogo di origine
    Cina
  • Marca
    JIANGSU ARMORED
  • Certificazione
    ROHS
  • Numero di modello
    8F-OM4-3.0-H-20m
  • Quantità di ordine minimo
    Cavo 1000M
  • Prezzo
    To Be Advised
  • Imballaggi particolari
    Consegna via mare o via aerea
  • Tempi di consegna
    2 settimane lavorative
  • Capacità di alimentazione
    500 pezzi di connettore al giorno

8 Cores OM4 Spiral Armored MPO Fiber Patch 3.0mm LSZH Jacket Rodent Resistant



8F Spiral Armored MPO Patch Cord with 3.0mm Purple LSZH Jacket Rodent Resistant

Spiral Armored MPO Patch Jumper, Spiral Armored Cable Assembly  Datacenter



With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites.

Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious



Because with metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Parameter

Item

Armored MPO patch cord

Fiber count 8F
Cable diameter 3.0mm
Cable jacket LSZH
Connector style MPO (Mala and Female)
Length 20M

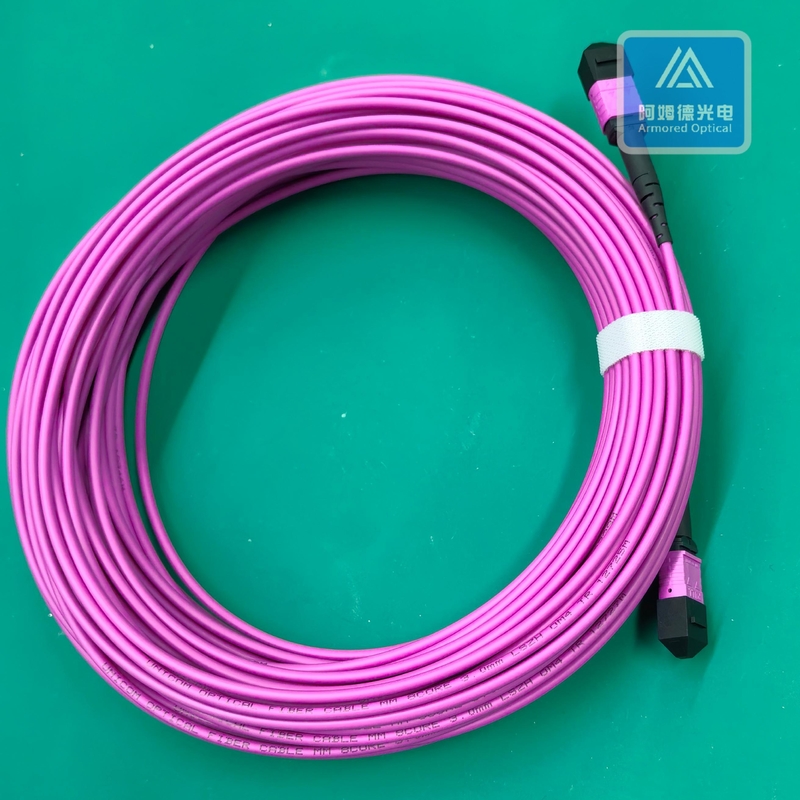

8 Cores OM4 Spiral Armored MPO Fiber Patch 3.0mm LSZH Jacket Rodent Resistant 0

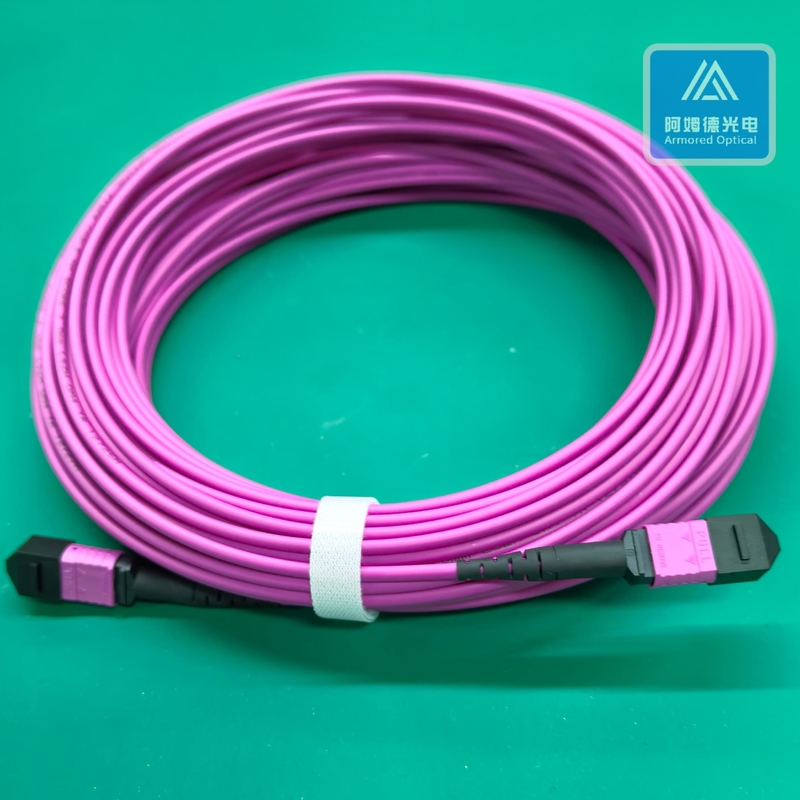

8 Cores OM4 Spiral Armored MPO Fiber Patch 3.0mm LSZH Jacket Rodent Resistant 1

8 Cores OM4 Spiral Armored MPO Fiber Patch 3.0mm LSZH Jacket Rodent Resistant 2



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, IEC60332, etc.
