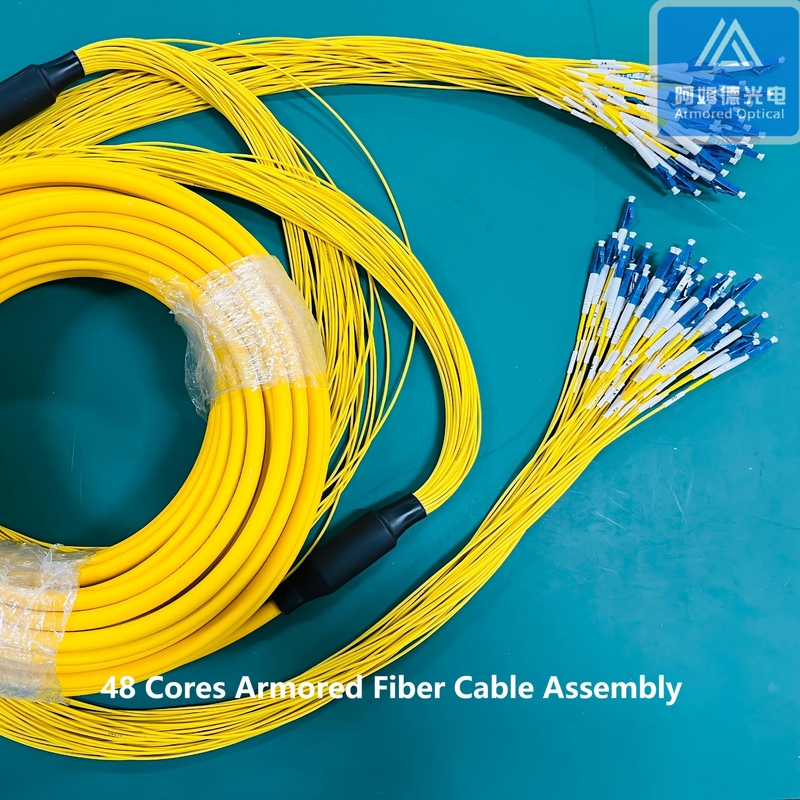

48F SM Stainless Steel Armored Fiber Patch Cord 30m Yellow LSZH 10.5mm With LC UPC
-
Nome48 nuclei con cordone blindato
-
Modalità in fibraModalità singola
-
ColoreGiallo
-
MaterialeLszh
-
Diametro10,5 mm
-
Lunghezza del cavo30m
-
Lunghezza di distribuzione100 cm
-
ApplicazioneFTTH, data center,
-
CaratteristicaResistente ai roditori
-
Classificazione di fiammaIEC60332-1-2
-
Luogo di origineCina
-
MarcaJIANGSU ARMORED
-
CertificazioneROHS
-
Numero di modello48F-B6a2-10.5-LSZH-Y
-
Quantità di ordine minimoCavo 1000M
-
PrezzoTo Be Advised
-
Imballaggi particolariConsegna via mare o via aerea
-
Tempi di consegna2-3 settimane lavorative
-
Capacità di alimentazione500 pezzi di connettore al giorno
48F SM Stainless Steel Armored Fiber Patch Cord 30m Yellow LSZH 10.5mm With LC UPC
48F SM Flexible And Durable Armored Fiber Patch Cord FTTX Installation Yellow LSZH 10.5mm
Spiral Armored Patch Cord, Double Jacket, Double Armored, Rodent Resistant.
Datacenter Installation and Renovation.
Parameter
| Item | 48 Cores Spiral Armored Patch Cord |
| Fiber | G657A |
| Cable Diameter | 10.5mm |
| Cable Jacket | Yellow LSZH, color can be customized |
| Length | 30M, etc. |
| Insert Loss | ＜ 0.30dB |
| Return Loss | ≥50dB (UPC) |
| Temperature | -40℃~80℃ |
| Fan-out Cable |
100cm Length, length can be customized. OD 2.0mm armored tube |
|
Cable Grade
|
The following standard can be choosen, IEC60332-1-2, Eca, Dca, Cca, OFCR, etc. Comply with ROHS |
Compare with non-armroed break-out cable which are apply for datacenter project,
spiral armored fiber cable has following advantages.
1. The volume is 1/2 -- 1/5 of the original ordinary break out cable
2. The weight is approximately 1/6 of that of a regular branch cable, or even smaller.
3. The spiral armored optical cable contains spiral armored tubes, which have obvious advantages in pressure resistance and rodent-resistant.
4, Even the cable contains armored tube, but because it's spiral tube, so the cable is still flexible, not hard to twist.
5. The price is also relatively affordable.
6. It saves a lot of space and is very friendly to the construction team.
7. The venue feels clean and convenient for later management and maintenance.
Feature
- Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
- It has greater durability in resisting pulls, strains and impacts from cabling installation.
- Different jacket material fit for different environments.
- UV-resistant
- It's designed for harsh environments where regular fiber optical cables couldn't work well.
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, IEC60332, etc.
